Self-Adhesive PDLC Smart Film

Self-Adhesive Smart Film

PDLC Self-adhesive Smart Film

In a few simple words, the PDLC film or smart film is a thin adhesive layer of liquid crystals that is applied to your window or glazing and that we connect to your electrical installation.

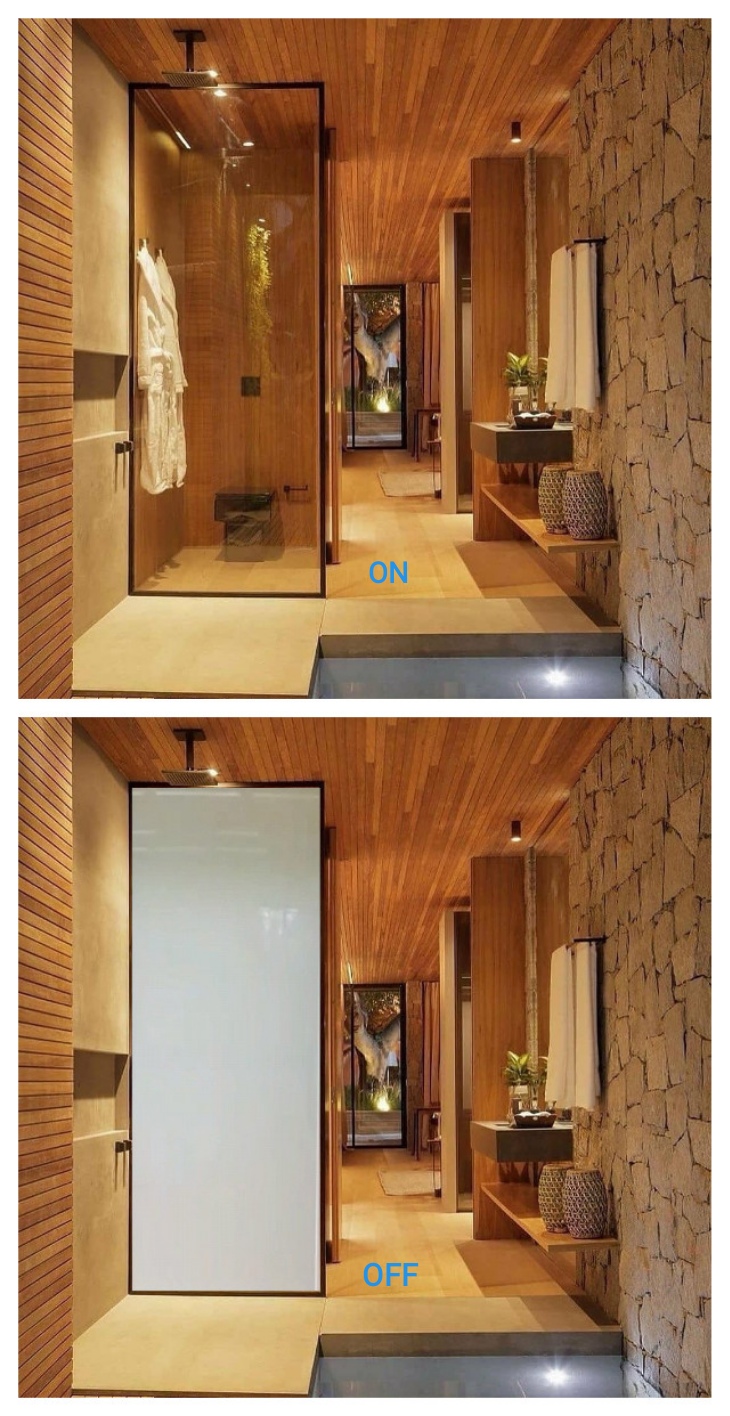

PDLC is manufactured with a self-adhesive cling layer on one side (peel and stick) which makes it easy to apply to both new and existing glass (no specialist installation equipment required). The application for car window、private living space like residential shower or office workplace and so on.A simple ON - OFF PDLC film mode switches the film from being transparent to opaque. When the film is off, it is opaque but allows light to pass through. And turn on the smart film for it to become transparent.

PDLC Self-Adhesive Switchable Smart Film is available in widths up to 1800mm and can be cut to any size. Custom shapes and sizes of Pdlc self-adhesive switchable smart film are available and multiple pieces can be joined together to create large switchable glazed panels or partitions.

Contact

PDLC Smart Film Features

High transparency rate >87%.

High rate of UV blocking >99%.

All liquid crystal imported from Japan.

Multi controlling ways, such as: Switch,Remote,App…etc.

High infrared resistant rate, Energy saving.

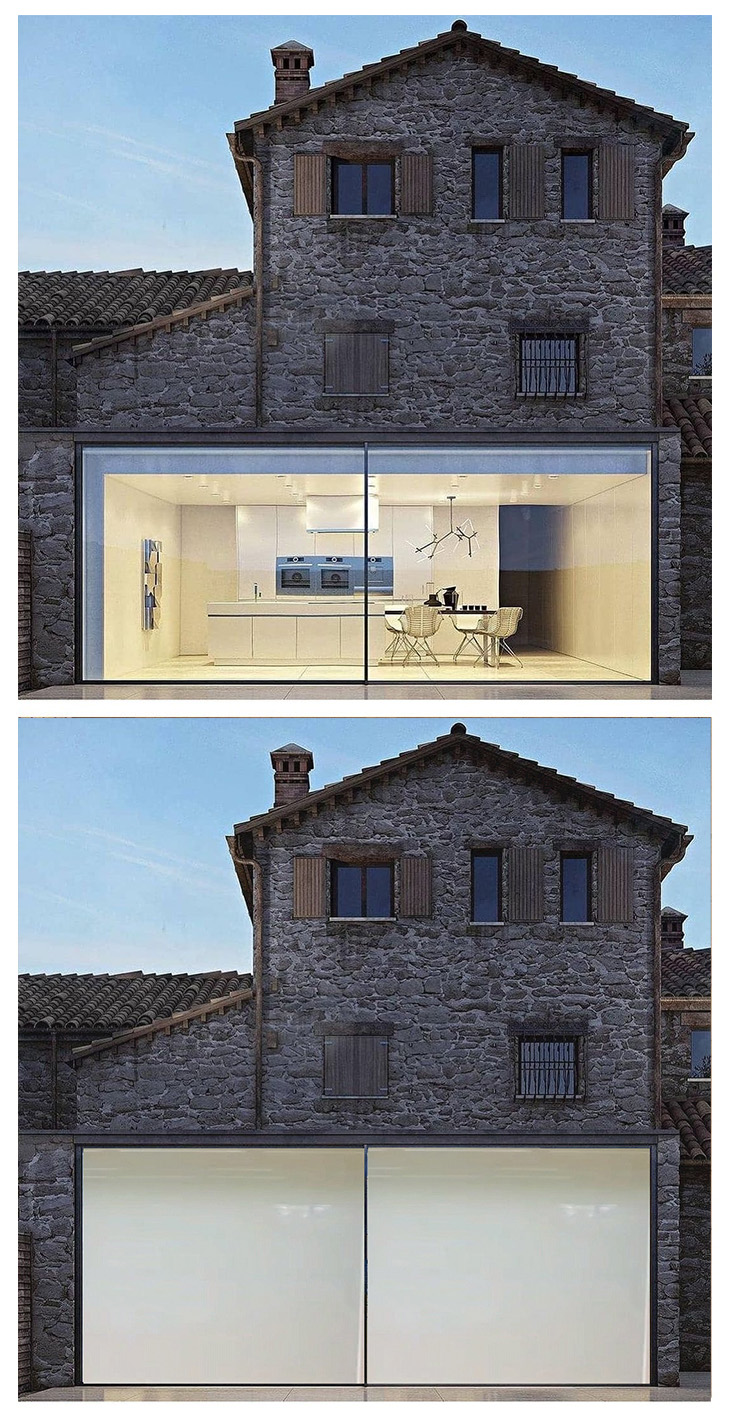

Instant privacy control, Switchable between opaque and clear.

Exceptional optical performance, better glare reduction.

High durability, more than 15 years life span.

Efficient use of space in interior of building, privacy and visual space is switchable.

Easy and low cost daily maintenance.

High definition to use as a rear projection screen.

PDLC Self-adhesive Smart Film Applications

Offices/ Private houses (bathrooms, bedrooms and living rooms)/ Hotels/ Catering/ Event rooms/ Room in banks / Meeting rooms/ Laboratories/ Hospital operating rooms , health practices (dentist, veterinarian, etc.)/ Jewelry stores.

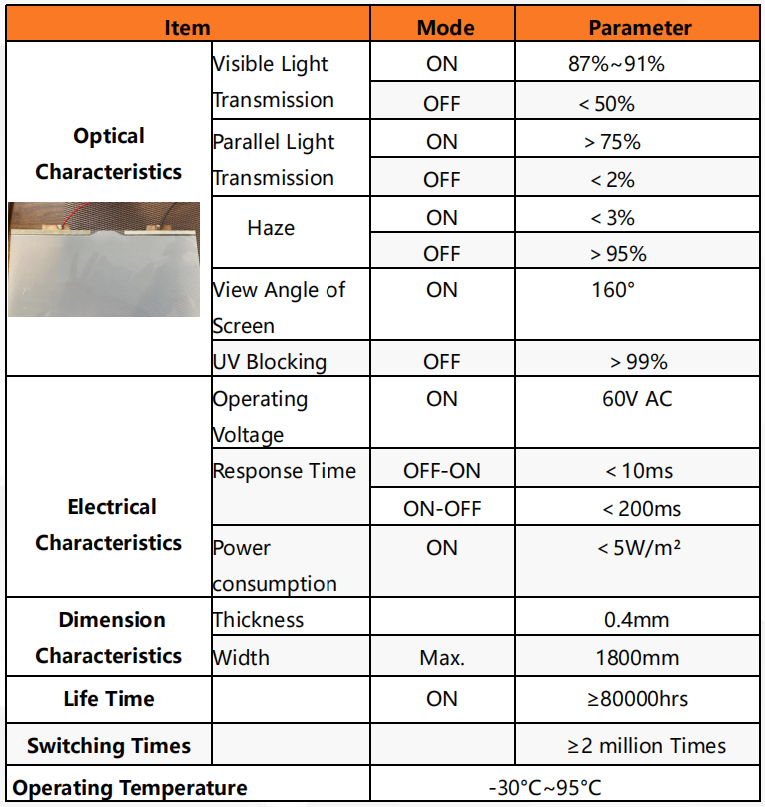

PDLC Smart Film Specifications

PDLC Self-adhesive Smart Film Structure and Principle

The core part of the PDLC self-adhesive smart film is a coating composed by liquid crystal molecules,On both sides of the PDLC layer is ITO conducting film which has conductive function,The outer side of the two ITO films are anti-scratch film and self-adhesive layer,the special adhesive film laminated on one side,so easily applied to an existing glass.finally the layer of protective film is covered on both side.

Two layers of ITO conductive film are filled with liquid crystal and polymer materials,So when the power off, the LC molecules are arranged in an irregular manner.meanwhile light is dispersed,So the film appears in an opaque state at this time,Now privacy protection is realized.

On the contrary, when power on,The current conducted by ITO films drive the LC molecules are arranged in an regular manner. meanwhile light can pass through freely, So the film appears transparent state at this time. Increase the sense of space in the room, while making the window looks more magical!

FAQ

Q1. 电子调光智能薄膜市场规模有多大？

答：到 2028 年，全球电子可切换智能薄膜市场预计将达到 68 亿美元。

Q2。电子调光智能薄膜市场的增长预测如何？

答：2023年至2028年，全球电子可切换智能薄膜市场预计将以10.5%的复合年增长率增长。





Q2。可切换智能薄膜市场的增长预测是多少？

答：2023年至2028年，全球可切换智能薄膜市场预计将以10.5%的复合年增长率增长。

Q1. What is the electronic switchable smart film market size?

Answer: The global electronic switchable smart film market is expected to reach an estimated $6.8 billion by 2028.

Q2. What is the growth forecast for electronic switchable smart film market?

Answer: The global electronic switchable smart film market is expected to grow with a CAGR of 10.5% from 2023 to 2028.

Q3.what’s the function on Self-Adhesive PDLC Smart Film when it used in normal scenario?

Self-Adhesive PDLC Smart Film easily control our switchable film from clear to frosted (opaque) with the controller. ... Smart film can be used as a switchable projection screen on a store.The global PDLC smart film window market is experiencing rapid growth, with an average annual increase of 16.8%. By 2024, it is expected to reach a staggering USD 9.7...
